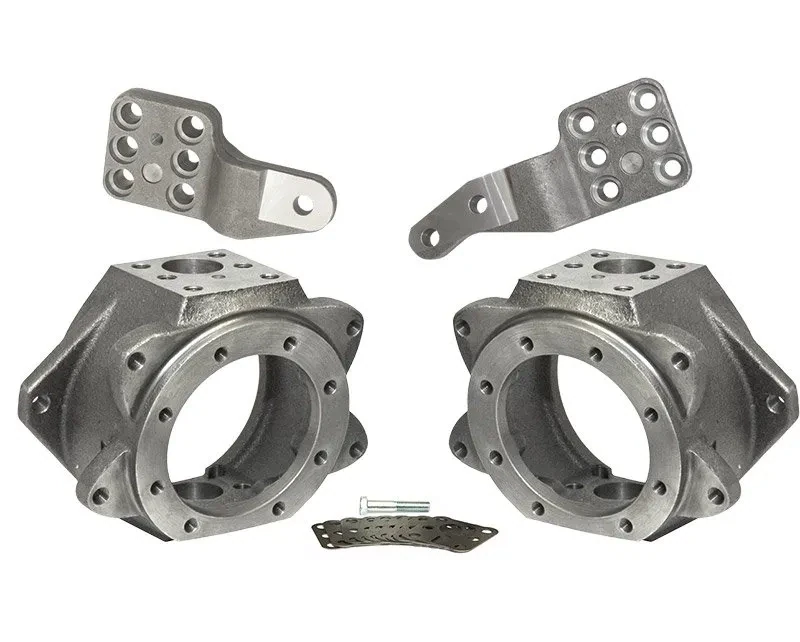

Fully Loaded Six Shooter Knuckle Kit, Left hand drive (normal USA trucks and 4Runner)

After years of development and testing, these knuckles and steering arms have set a new standard in Toyota knuckle strength and reliability. The Fully Loaded Six Shooter Kit totally eliminates the problem of broken steering knuckles and studs. The addition of two studs in each arm effectively prevents the steering arm from becoming loose or shearing off the studs under extreme loads. The knuckle housing was designed with thicker than stock material and larger gussets have been added around the outside of the knuckle for extra strength. Precision CNC machined, each set of knuckles and steering arms are inspected and tested for the highest quality of products that Trail-Gear can deliver.

Included in The Fully Loaded Six Shooter Kit is a special 6 hole shim pack for use between the top of the knuckle and the steering arm. Also included is a 1/2" coarse thread bolt to help remove the steering arms for knuckle service. To remove the steering arms, remove all 6 nuts, then install the bolt in the top of the arm. As the bolt is tightened, the steering arm is pulled up off the knuckle. Stock lower bearing plates and shims from your old knuckles are needed for knuckle assembly. A minimum of four additional steering arm studs is needed for installation.

Kit Includes:

• Knuckles (2)
• Steering Arms (2)
• Shims

All products carry our 12 Month Limited Warranty. All warranties are limited to the original purchaser and are not transferable to subsequent owners of the product. The warranty period begins on the purchase date. Trail-Gear warrants that it will repair or replace, free of charge, any eligible product which, under normal conditions of use and service, proves to be defective in materials or workmanship. This warranty does not cover any labor costs incurred in diagnosis of defects, removal or reinstallation of a product, nor does it cover any other consequential expenses.
