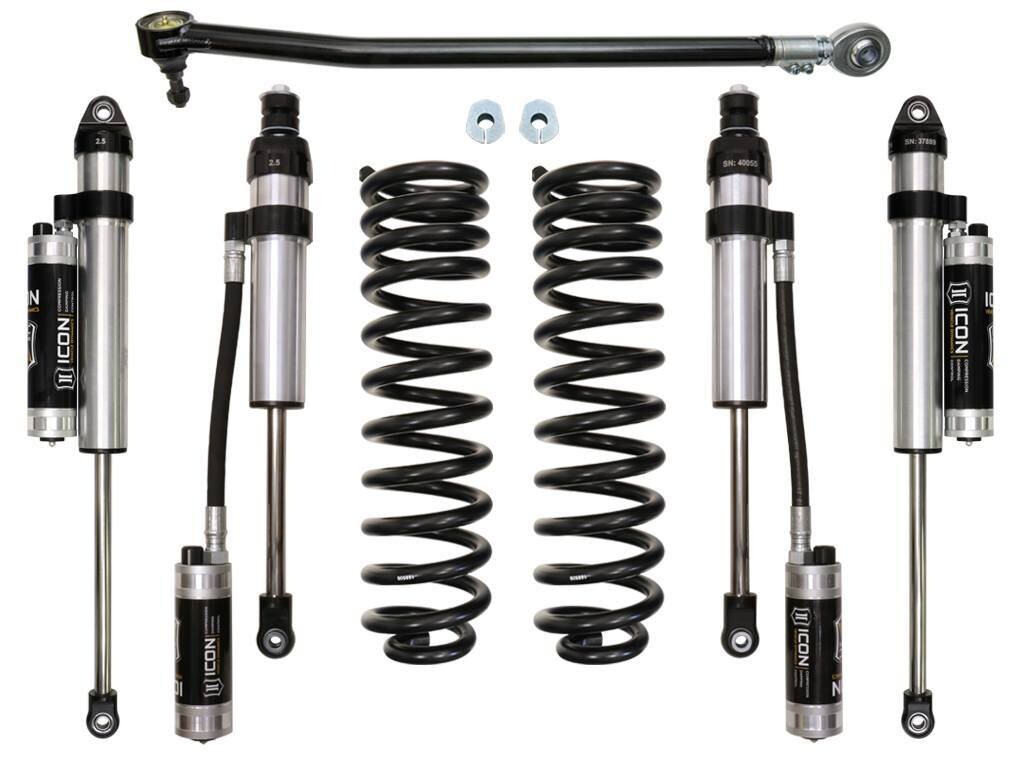

ICON 2017-19 Ford F250/F350, 2.5" Lift, Stage 4 Suspension System
Product Details
Product Details
This ICON Vehicle Dynamics 2.5” suspension system is a great way to level your 4WD 2017-2019 Ford F250/350 Super Duty while drastically improving ride quality and performance. The Stage 4 system is perfect for on-road and off-road use including towing, job site duty, and spirited off-road adventure. ICON's Stage 4 System combines dual rate coil springs, alignment cams, ICON CDC Valve 2.5 Aluminum Series front remote reservoir and rear piggyback reservoir shocks, and an all-new adjustable track bar designed specifically for the 2017-UP Super Duty. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can be rest assured you have the best suspension solution on the market.
- Fits 2017-2019 F250 / F350 4WD applications
- FK Rod End bearings provide extended longevity and minimal deflection
- Lifetime guarantee against coil spring breakage or sag
- Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
- Approximately 25% increased front wheel travel over stock
- ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
- ICON shocks feature vehicle specific tune for superior performance and ride quality
- ICON CDC Valve allows quick and easy end user compression adjustability
- Shocks are fully rebuildable and revalvable
- Corrosion resistant anodized aluminum shock bodies with 7/8" shafts (2.5 Aluminum Series shocks)
Technical Notes
- OEM Wheels & Tires Fitment: Yes
- TECH NOTE: Included rear shocks are compatible with 0-3" of rear lift over stock
- Ships in multiple boxes
- Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5.00” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
- APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
- APPLICATION NOTE #119: RARE CASES REQUIRE A 2.6 DEGREE ALIGNMENT CAM ON ONE SIDE OF VEHICLE FOR PROPER CASTER SPLIT
- TECH NOTE: Brake line kit (Part # 61111) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
Warranty Information
Warranty information unavailable
Compatible Make / Model
Specification
| Brand | ICON Vehicle Dynamics |
| Prop65 Warning | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Technical Notes |
|
| UPC | 00840103418056 |
| Maximum Lift | 2.5 |
| Spring Color | Black |
| Bushings Included | Yes |
| Add-On Part | 64039 - 08-UP FSD TRACK BAR BUMP STEER BRACKET KIT |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Tires | 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Recommended Aftermarket Wheels | ICON Alloys | 20x9" w/ 5.25” Backspace / 6mm Offset |
| Width | 12.00 in |
| Length | 27.00 in |
| Depth | 6.00 in |
| Weight | 143.0000 lb |
