Rock Assault Ram Steering TG Rock Assault Axle, 2.0"x6" RAM

The Rock-Assault Ram Steering assist kit is the best kit you will find anywhere! Our Toyota kit features a 6" X 1.5" stroke hydraulic ram with high temp inner and outer seals for long life and no leaks. Our specially designed ram features a 3/4" rod that is 50% stronger than other 1/2" rods on the market. For Dana knuckle applications we also offer an 8" stroke version.

Our specially formed, easy to install brackets make installing our kit a breeze. If you have looked at other kits on the market, you will see they either don't include mounts or they just provide generic tabs. Our mounting hardware is specially designed to fit the Toyota axle and High Steer. Once the steering box has been tapped, installation of the ram takes about one hour. Each bracket is formed from heavy-duty 1/4" plate steel for extra strength. Fits 1979 - 1995 Toyota Pickup and 4Runner with solid front axle.

• Ram with high temp inner and outer seals
• Rod ends w/jam nut
• Ram bracket for axle housing
• Ram bracket for tie rod
• (2) Hoses
• (2) JIC 90 degree elbows
• (2) 1/4" NPT x #6 JIC steering box fittings
• Mounting Hardware
• Instructions w/photos

Kit requires:

• High Steer crossover steering with 1.25" tie rod
• Tapped steering box
• 6" or 8" stroke hydraulic ram with high temp inner and outer seals for long life and no leaks.
• 5/8" or 3/4" rod that is 50% stronger than other 1/2" rods on the market
• Our mounting hardware is specially designed to fit the Toyota axle and High Steer
• Brackets are formed from heavy-duty 1/4" plate steel for extra strength

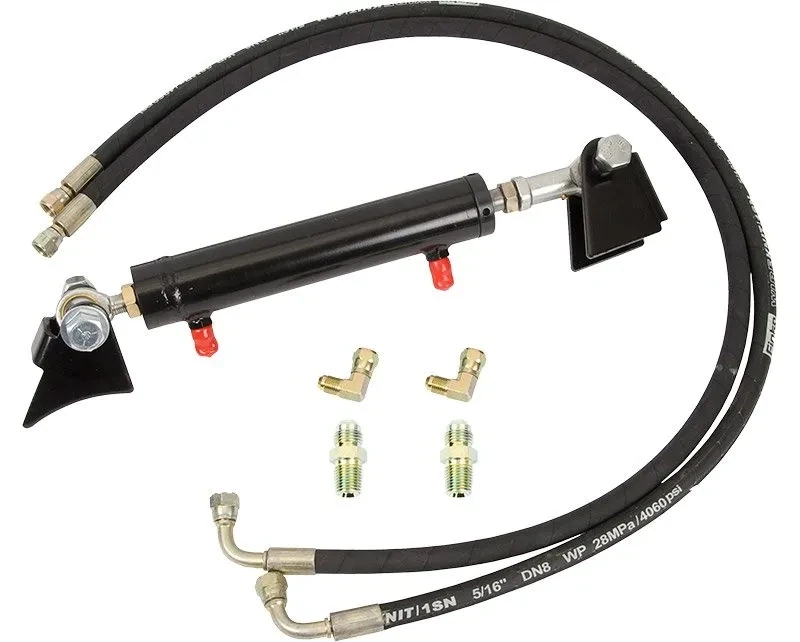

Comes with the following:

• Ram with high temp inner and outer seals
• Rod ends w/jam nut
• Ram bracket for axle housing
• Ram bracket for tie rod
• (2) Hoses
• (2) JIC 90 degree elbows
• (2) 1/4" NPT x #6 JIC steering box fittings
• Mounting Hardware
• Instructions w/photos
• 1979-1995 Toyota Pickup (All Engines)
• 1985-1995 Toyota 4Runner (All Engines)
• Toyota Rock Assault™ Front Axle Housing
• All products carry our 12 Month Limited Warranty. All warranties are limited to the original purchaser and are not transferable to subsequent owners of the product. The warranty period begins on the purchase date. Trail-Gear warrants that it will repair or replace, free of charge, any eligible product which, under normal conditions of use and service, proves to be defective in materials or workmanship. This warranty does not cover any labor costs incurred in diagnosis of defects, removal or reinstallation of a product, nor does it cover any other consequential expenses.
