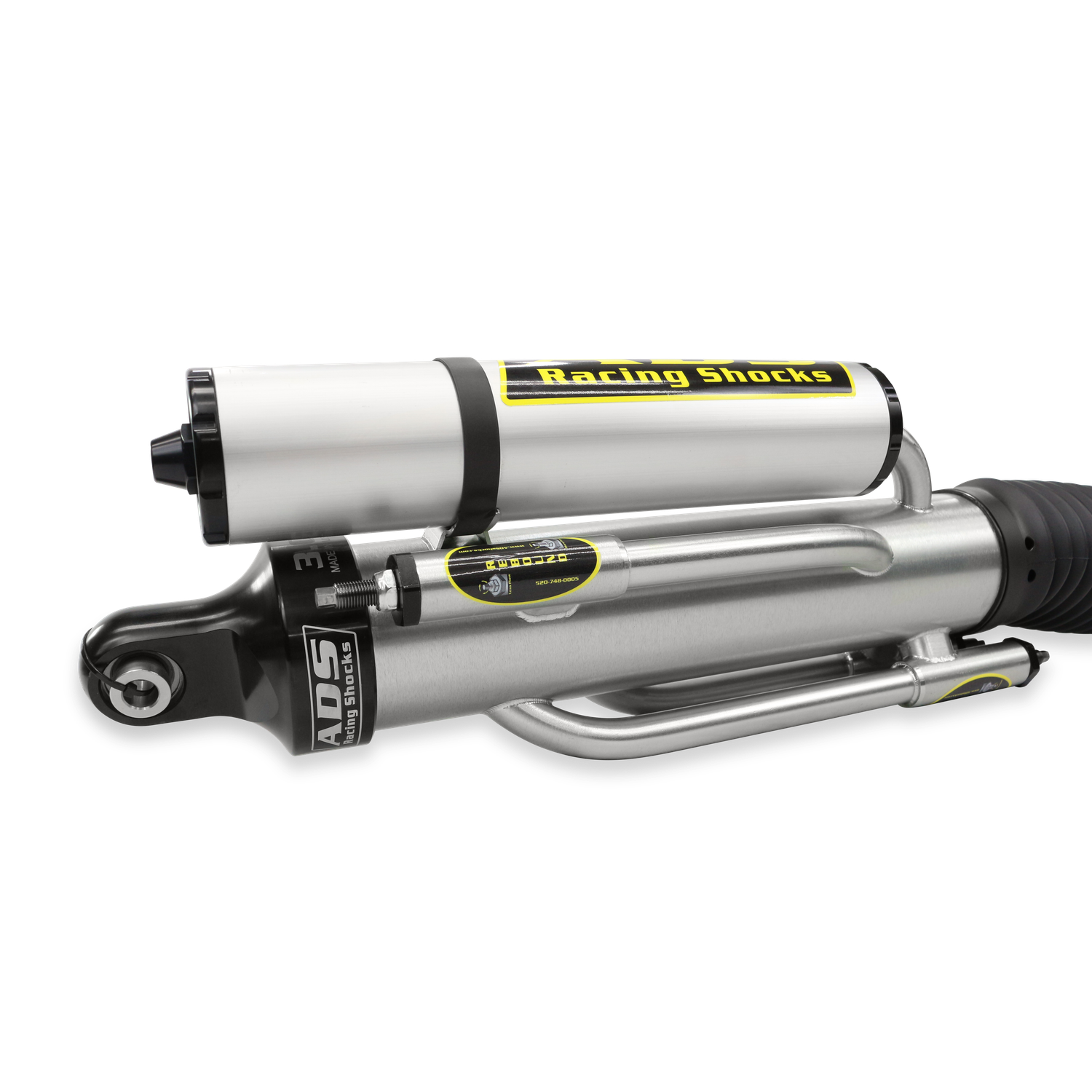

ADS Direct Fit Race - Rear 2011-2014 Ford F-150 Raptor - 3.0 in. Bypass Shock - 3-Tube - Piggyback Reservoir
Product Details
Free Shipping
| Active or Passive Suspension | Passive |
|---|---|
| Adjustable Compression | Yes |
| Adjustable Rebound | Yes |
| Adjustable Reservoir | No |
| Adjustable Ride Height | No |
| Body Color | Silver |
| Body Diameter | 3 IN |
| Body Finish | Electric zinc plated w/ Ceramic coat |
| Body Material | Steel |
| Boot Included | Yes |
| Brand | ADS Racing Shocks |
| Collapsed Length | 17.995 IN |
| Drivetrain | 4WD |
| Emission Code | 6 |
| Extended Length | 29.665 IN |
| Gas Charged | Yes |
| Grade Type | Performance |
| Includes Bump Stop | Yes |
| Internal Construction Type | Mono tube |
| Internal Rebound Bumper | No |
| Internal Rebound Spring | No |
| Lift Range | 0-2.5 IN |
| Lower Mount Type | Eyelet |
| Mounting Hardware Included | Yes |
| Part Type | Suspension Shock Absorber |
| Position | Rear |
| Quantity | Sold as a Pair |
| Requires UCA | No |
| Reservoir Color | Silver |
| Reservoir Diameter | 2.5 IN |
| Reservoir Finish | Anodized |
| Reservoir Length | 11 IN |
| Reservoir Material | 6061 Aluminum |
| Reservoir Type | Piggyback |
| Shaft Diameter | 0.875 IN |
| Shaft Material | Hard-chrome plated steel |
| Shock Travel | Extended Travel |
| Travel Length | 11.669999999999998 IN |
| Type | Bypass |
| Upper Mount Type | Eyelet |
| Valving Type | Progressive |
| Weight | 46 LB |
| UPC | 090127836996 |
| Part Number | 300-10RTR-000 |
