Power Flow Steering Pump Upgrade Kit 1650 PSI

The stock Toyota pump is just barely able to supply the volume and pressure needed to run Hydraulic assist steering. The stock pump puts out 1,300 PSI at only one gallon per minute. The stock pump is not able to provide enough fluid to run both the stock steering and the demands of a ram, especially at low RPM's. Drilling out the restrictor plates in a stock pump for more volume often leads to pump failure.

The answer is a replacement "TC" style pump. The Trail-Gear Power Flow pump puts out 1,650 PSI of pressure at 4.5 gallons per minute. This provides the full fluid volume your steering box and ram are looking for, even at an idle.

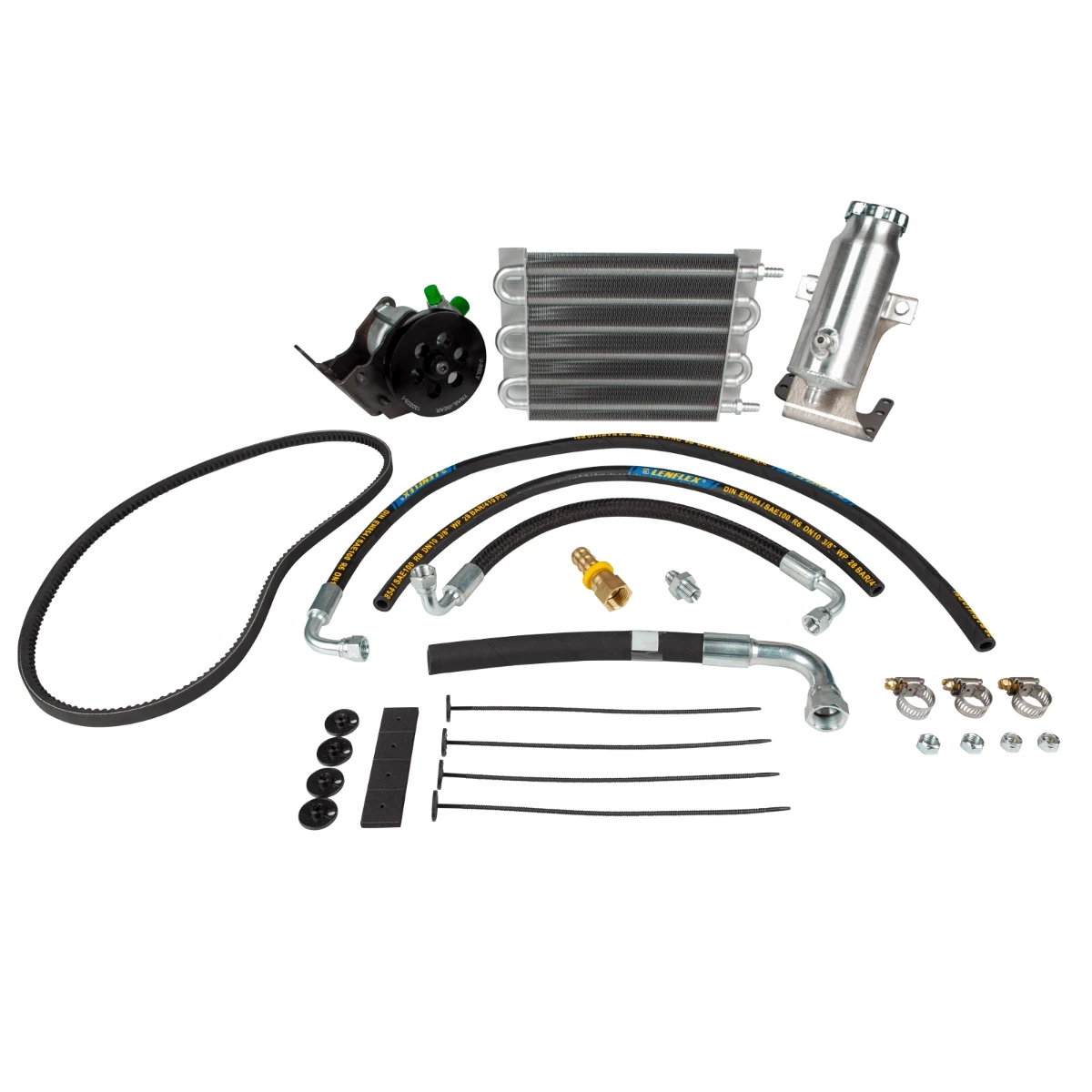

Designed to work with stock or ram drilled IFS power steering boxes, this kit includes the Power Flow 1,650 PSI pump, pump bracket, reservoir, reservoir bracket, belt, fittings, hoses, and hardware.

Application Notes: This pump and bracket is designed to fit all Toyota 4cyl 4wd motors from 1979 - 1995. A large power steering fluid cooler (included) is required on the low-pressure side of the system. Pump bracket works in conjunction with the stock idler bracket. If your truck is not currently equipped with power steering, you will need to purchase the idler bracket and replace the steering gearbox with one designed for use with power steering. The stock fan belt will not work with this pump and will need to be replaced with a Napa #9430 belt. The belt is included with the kit.

• 1,650 PSI of pressure
• This pump and bracket is designed to fit all Toyota 4cyl 4wd motors from 1979 - 1995
• 1979-1995 Toyota Pickup (4cyl Engines)
• 1985-1995 Toyota 4Runner (4cyl Engines)
• All products carry our 12 Month Limited Warranty. All warranties are limited to the original purchaser and are not transferable to subsequent owners of the product. The warranty period begins on the purchase date. Trail-Gear warrants that it will repair or replace, free of charge, any eligible product which, under normal conditions of use and service, proves to be defective in materials or workmanship. This warranty does not cover any labor costs incurred in diagnosis of defects, removal or reinstallation of a product, nor does it cover any other consequential expenses.
